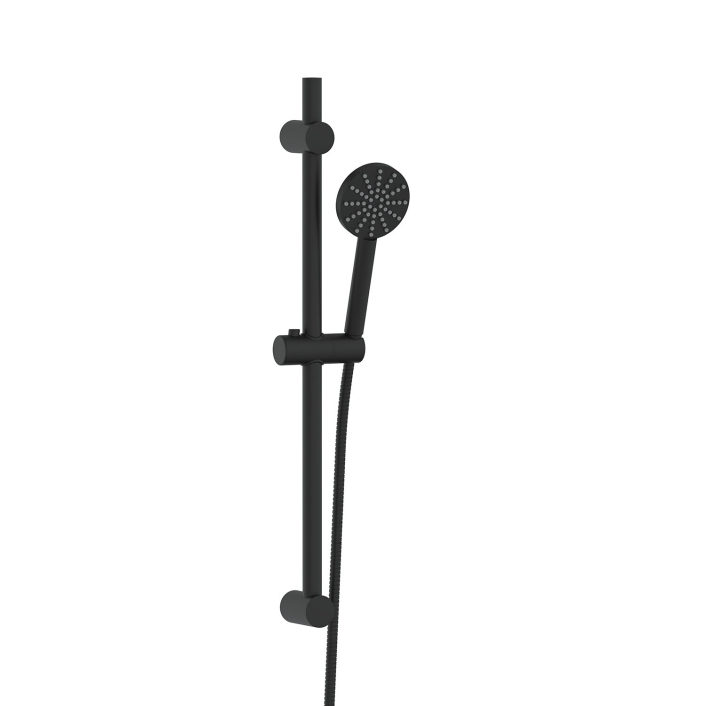

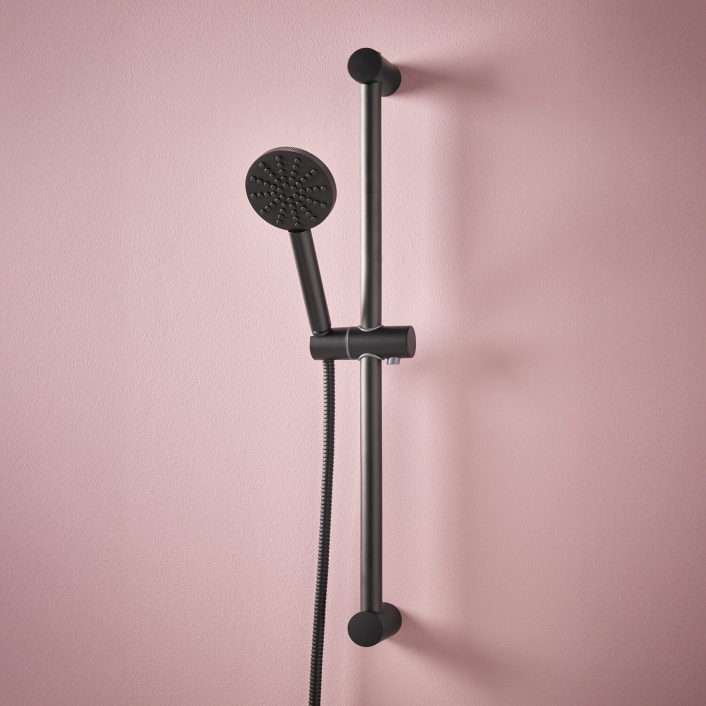

An exposed riser rail from Scudo, in stainless steel with a matte black finish, wall mounted — the pipework runs visibly up the rail rather than hidden in the wall.
It measures 116mm wide, 710mm tall and 72.5mm deep. Flow reaches 8.6 l/min at 1 bar, rising to 20.6 l/min at 5 bar, over a 0.5 to 5 bar working range through a 1/2 BSP inlet.
Key Features:
- Colour: Matte Black
- Material: Stainless Steel
- Size: 116 x 710 x 72.5mm
- Mounting: Wall mounted, exposed
- Flow: 8.6 l/min at 1 bar
- Operating pressure: 0.5-5 bar
- Inlet connection: 1/2 BSP
Product Specifications
Please note all measurements are in 'mm'
Overview:
Product Type: Slider Rails
Materials & Finish:
Colour: Matte Black
Material: Stainless Steel
Construction Material: Stainless Steel
Colour / Finish: Matte Black
Dimensions:
Width (mm): 116
Height (mm): 710
Depth (mm): 72.5
Specifications:
Installation type: Wall Mounted
WRAS Approved: No
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Inlet Connection: 1/2 BSP
0.2bar (l/min): 3.6
0.5bar (l/min): 6.1
1bar (l/min): 8.6
2bar (l/min): 12.4
3bar (l/min): 14.6
5bar (l/min): 20.6
