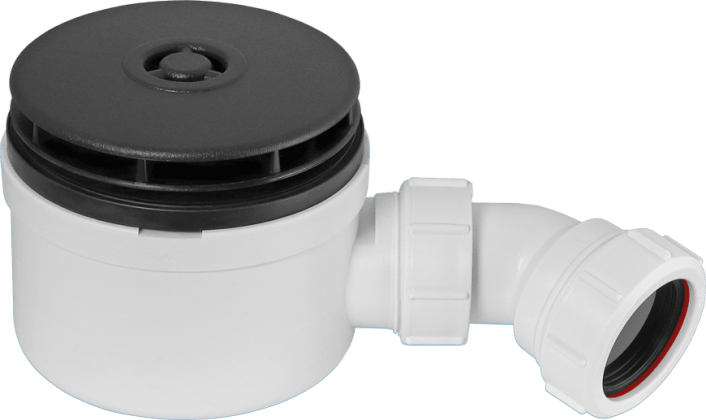

McAlpine 90mm Shower Trap Black

"90mm x 50mm Water Seal Shower Trap with 1½” Outlet Flanges available in White or Chrome Plated Plastic, or Chrome Plated Brass Suitable for shower trays with a 90mm waste hole 50mm Water Seal 1½” BSP Thread Supplied with 135° Bend – BSP coupling nut x 1½” Universal Removable 110mm flange facilitates easy cleaning Flow rate 34 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002 Overall height is only 70mm Constructed from polypropylene Conforms to EN 274-1:2002 70mm under-tray dimension Traps ST90CP10-70, ST90CB10-70 and ST90WH10-70 are suitable for tray thickness 0-23mm Traps ST90CPB-P-70 and ST90CPB-S-70 are suitable for tray thickness 5-30mm"
