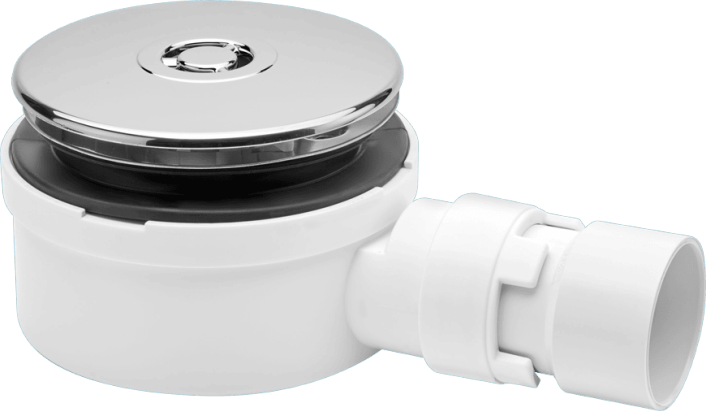

McAlpine 90mm Shower Trap 25mm Water Seal Cp Plastic Dome 53mm Height

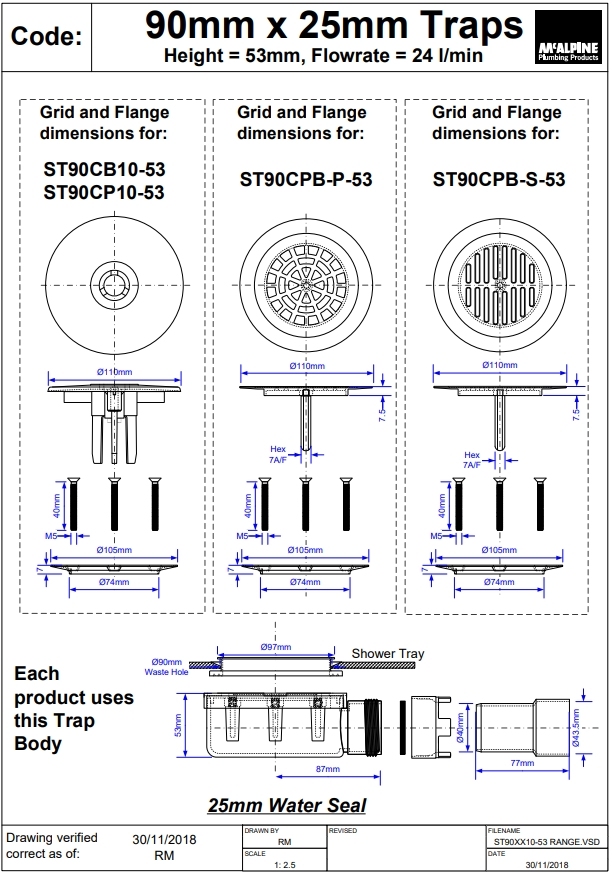

"90mm x 25mm Water Seal Slim Shower Trap with 1½” Solvent Weld Outlet Flanges available in Chrome Plated Plastic, or Chrome Plated Brass Suitable for shower trays with a 90mm waste hole Overall height is only 53mm Fixed with Stainless Steel Clamping Ring and 3 securing screws for tight connection to the shower tray 25mm Water Seal Supplied with 1½” solvent weld socket Removable 110mm flange facilitates easy cleaning Flow rate 24 l/min when tested under a constant 15mm head of water in accordance with clause 5 of BS EN 274-2:2002 82mm under-tray dimension Suitable for tray thickness 0-17mm Note: Longer flanges are available to suit thicker trays with a tray thickness between 7-24mm."
