Product Info

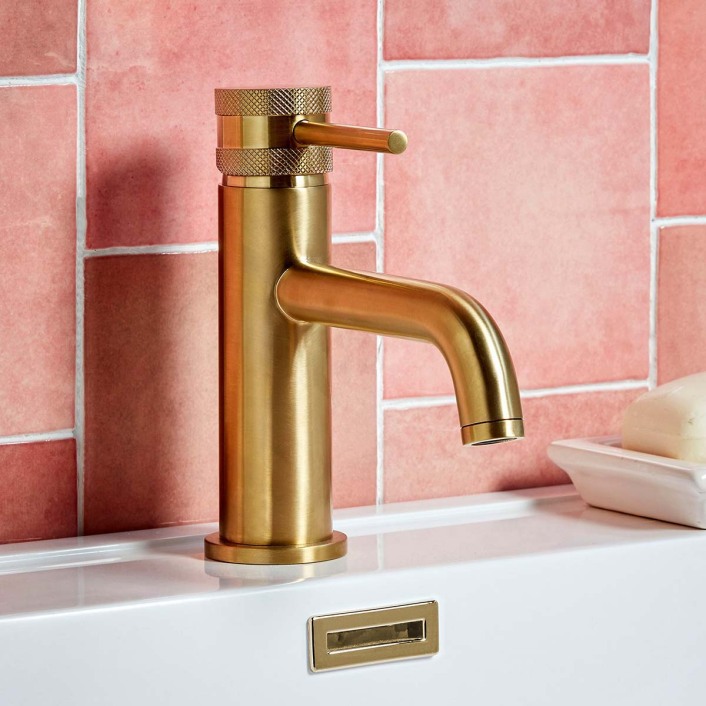

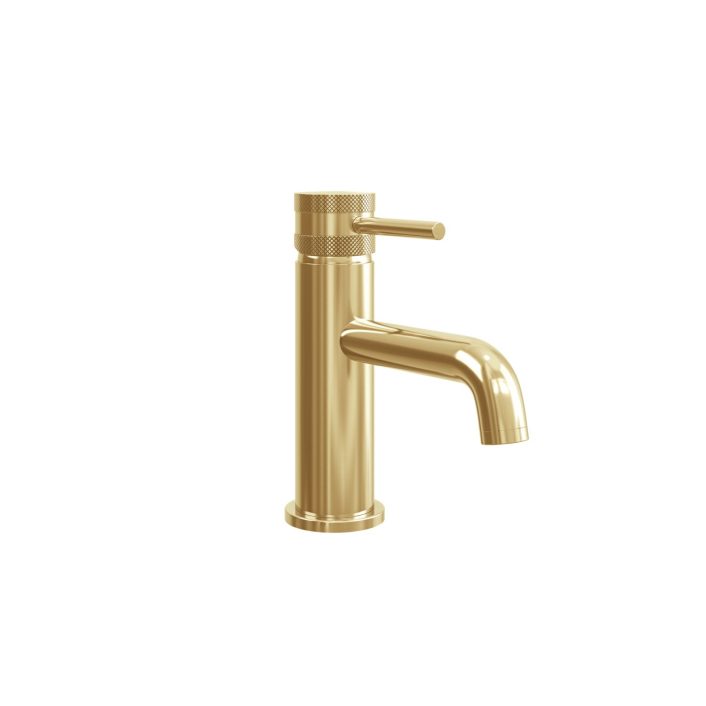

The Core mono basin mixer from Scudo is made in brass, standing 171.5mm tall on a 54mm-wide base and operated by a single lever handle.
It is deck mounted through one 35mm tap hole and runs on a 35mm cartridge fed by a 1/2" M10 inlet. It delivers 6 litres a minute at 1 bar and works across a range of 0.5 to 5 bar, with flexible tails included for connection to the supply.
Key Features:
- Size: 171.5 x 54mm
- Material: Brass
- Installation: Deck mounted
- Tap holes: 1 x 35mm
- Flow rate: 6 l/min at 1 bar
- Operating pressure: 0.5 to 5 bar
- Flexible tails included
Product Specifications
Please note all measurements are in 'mm'
Overview:
EAN: 5060766124445
Product Type: Basin Mixers
Range: Core
Manufacturer's Guarantee: Lifetime
Design & Appearance:
Style: Modern
Materials & Finish:
Colour: Brushed Brass
Material: Brass
Finish: Brushed
Construction Material: Brass
Configuration & Options:
Number of Tap Holes: 1
Handle Type: Lever
Number of tap holes required: 1
Capacity & Flow:
Minimum Recommended Bar Pressure: 0.5 Bar
Maximum Recommended Bar Pressure: 5 Bar
Dimensions:
Width (mm): 54
Height (mm): 171.5
Length (mm): 177.19
Plumbing:
Waste Included: No
Tap Type description: Mono Mixer
Includes Waste: No
Specifications:
Installation type: Deck Mounted
WRAS Approved: Yes
Installation Type: Deck Mounted
Condition: New
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Inlet Connection: 1/2" M10
0.2bar (l/min): 2.5
0.5bar (l/min): 4
1bar (l/min): 6
2bar (l/min): 8.5
3bar (l/min): 10.6
Flexible Tails Included: Yes
Swivel Spout: No
Valve / Cartridge Type: 35mm Cartridge
Tap Hole Diameter (mm): 35
Tap Control: Single Lever
