Product Info

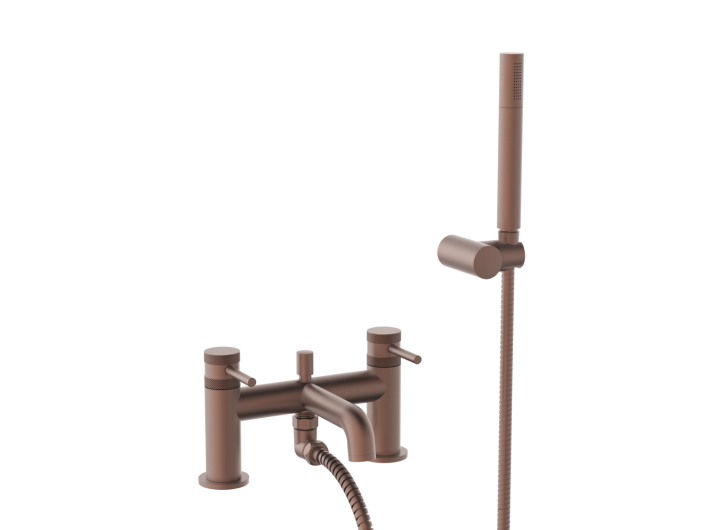

The Scudo Core bath shower mixer runs the bath and a shower from one deck-mounted body, so filling and showering are handled at the same point on the bath rim.
It needs two tap holes of 32mm diameter, and the handle type is lever, working on a quarter-turn cartridge that goes from closed to fully open in a quarter turn. Flow runs from 4.4 litres a minute at 0.2 bar up to 15.9 litres a minute at 3 bar on a 3/4 BSP inlet, between 0.5 and 5 bar. It is brass throughout, finished in brushed bronze, and WRAS approved.
Key Features:
- Range: Core
- Type: Deck-mounted bath shower mixer
- Handle type: Lever
- Valve/Cartridge: Quarter turn cartridge
- Tap holes required: 2, 32mm diameter
- Flow rate: 4.4-15.9 l/min across 0.2-3 bar (operating pressure 0.5-5 bar)
- Material: Brass
- Colour/Finish: Brushed Bronze
Product Specifications

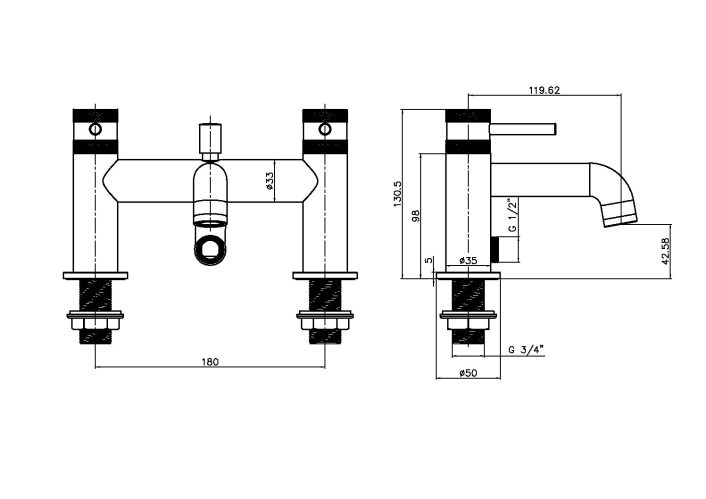

Please note all measurements are in 'mm'
Materials & Finish:
Colour: Brushed Bronze
Material: Brass
Construction Material: Brass
Configuration & Options:
Handle Type: Lever
Number of tap holes required: 2
Plumbing:
Tap Type description: Manual Mixer
Includes Waste: No
Specifications:
Installation type: Deck Mounted
WRAS Approved: Yes
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Inlet Connection: 3/4 BSP
0.2bar (l/min): 4.4
0.5bar (l/min): 6.8
1bar (l/min): 9.3
2bar (l/min): 13.3
3bar (l/min): 15.9
Flexible Tails Included: No
Swivel Spout: No
Outlet Connection: 1/2 BSP handset
Valve / Cartridge Type: Quarter turn cartridge
Tap Hole Diameter (mm): 32
