Images are for illustration purposes only
Product Info

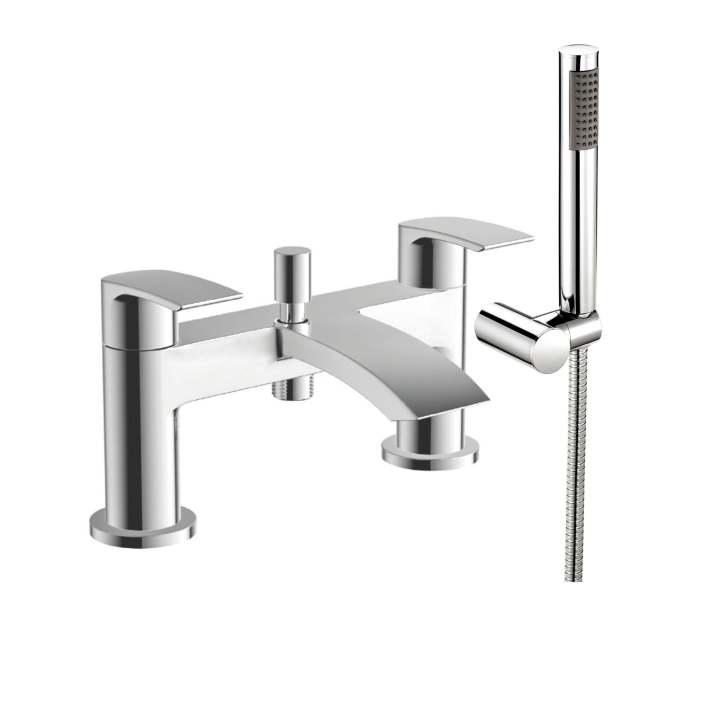

The Scudo Belini Bath Shower Mixer is cast in brass and finished in chrome, with a 230mm width and 128mm height, deck mounted through two 32mm tap holes.
A single lever runs on a quarter-turn cartridge, delivering up to 29.5 litres per minute at 3 bar mains pressure, with a 1/2 BSP handset outlet for the hose.
It comes complete with a shower kit and wall bracket.
Key Features:
- Size: 230 x 128mm
- Material: Brass
- Finish: Chrome
- Installation: Deck mounted
- Valve: Quarter turn cartridge
- Flow rate: 29.5 litres/min at 3 bar
- Includes: Shower kit and wall bracket
Product Specifications
Please note all measurements are in 'mm'
Overview:
Product Type: Bath Shower Mixers
Materials & Finish:
Colour: Chrome
Material: Brass
Construction Material: Brass
Colour / Finish: Chrome
Configuration & Options:
Handle Type: Lever
Number of tap holes required: 2
Dimensions:
Width (mm): 230
Height (mm): 128
Length (mm): 140
Plumbing:
Tap Type description: Manual Mixer
Includes Waste: No
Specifications:
Installation type: Deck Mounted
WRAS Approved: No
TMV Approved: No
Minimum Operating Pressure (bar): 0.5
Maximum Operating Pressure (bar): 5
Inlet Connection: 3/4 BSP
0.2bar (l/min): 7.5
0.5bar (l/min): 13.2
1bar (l/min): 19.3
2bar (l/min): 24.2
3bar (l/min): 29.5
Flexible Tails Included: No
Swivel Spout: No
Outlet Connection: 1/2 BSP handset
Valve / Cartridge Type: Quarter turn cartridge
Cartridge Spare code: T8308-08
Tap Hole Diameter (mm): 32
Reviews
SKU: tap203
Scudo Belini Bath Shower Mixer, Chrome, with Shower Kit & Wall Bracket
£85.00 GBP
