Images are for illustration purposes only
Product Info
This concealed cistern is built into the wall behind the finished surface, so only the flush plate is left on show. The supply enters from the right-hand side, which is the detail to match to the way your pipework arrives at the wall.
Moulded in white plastic at 340 x 295 x 140mm, it needs at least 1 bar at the inlet and takes up to 5, so the supply is worth checking before the wall goes up. The 6/3 litre dual flush draws the full six litres only when it is wanted, the push button is cable operated, and the cistern is WRAS approved with a built-in air gap.
Key Features:
- Colour: White
- Material: Plastic

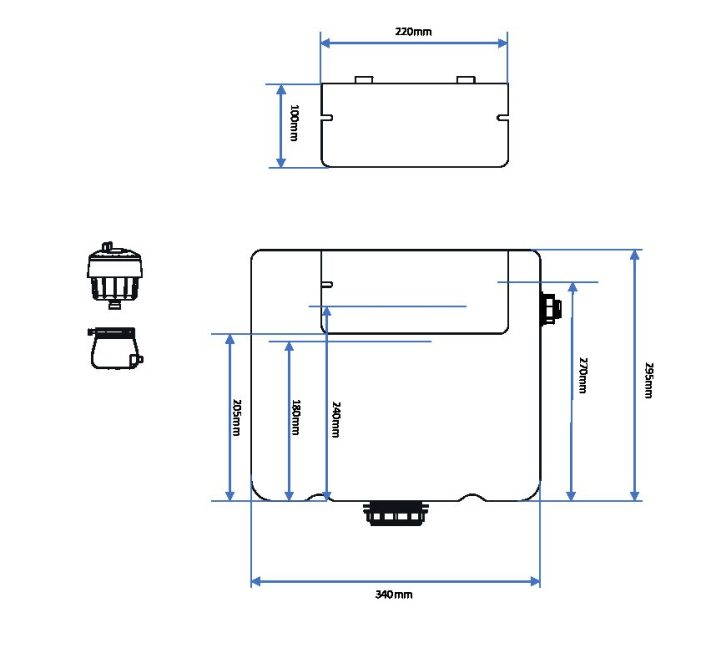

- Size: 340 x 295 x 140mm (W x H x D)
- Water inlet: Right, side entry
- Flush volume: 6/3L
- Flush type: Cable operated push button
- Pressure range: 1-5 bar
- WRAS approval: Yes
Delivery and In-store Collection
- Available for in-store collection.
- Available for next day dispatch.
Product Specifications
Please note all measurements are in 'mm'
Overview:
Product Type: Concealed Cistern Sets
Materials & Finish:
Colour: White
Material: Plastic
Construction Material: Plastic
Colour / Finish: White
Dimensions:
Width (mm): 340
Height (mm): 295
Depth (mm): 140
Specifications:
Installation type: Wall Mounted
Water Inlet Location: Right, Side Entry
Flush Volume: 6/3L
Flush Type: Cable Operated, Push Button
WRAS Approval: Yes
Minimum Pressure: 1 bar
Maximum Pressure: 5 bar
Air Gap: Yes
Reviews
SKU: cistern002w
Scudo Aureon™ Concealed Cistern – Side Inlet
£30.00 GBP
