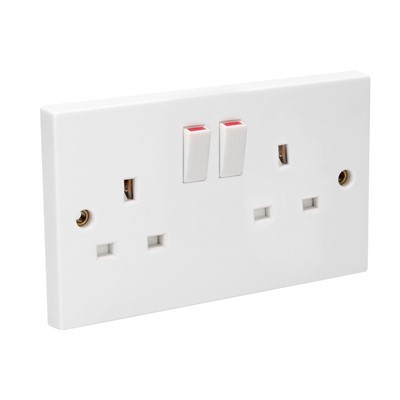

2 Gang Switched Socket 13Amp - Economy

BSEN 1363 AC only contact gap - 3mm Large capacity for easy terminal installation Supplied with M3.5 x 30mm Fixing Screws Fireproof moulded classic design Terminals accept up to 4 x 2.5mm² cables Dual Earth terminals for high integrity earthing Supplied with M3.5 x 30mm Fixing Screws Technical Specification General Information Colour/Finish White Dimensions (mm) 86 x 146 x 9mm Fixing Centre (mm) 120.6mm Front Plate Depth (mm) 9mm Minimum Box Depth (mm) Plastic / PVC Box - 25mm Electrical Approvals BS 1363 pt2 Frequency (Hz) 50/60Hz Kite Mark / ASTA KM73109 Number Earth Terminals 2 Earth Terminals Number Poles Single Pole Rated Load Capacity (Amps) 13A Rated Operating Voltage (v) 240v Terminal Capacity (mm²) 4 x 2.5mm² Performance Data Control (1 / 2 Way) 2 Ways Knockouts N LuQ4 N Outlets (1 / 2) etc 2 Gang Switch (1 / 2) etc 2 Switches Construction Body Urea-Formaldehyde Insert Colour White insert Warranty (Years) 25 Weight 190g Other Applications Domestic, commercial applications
