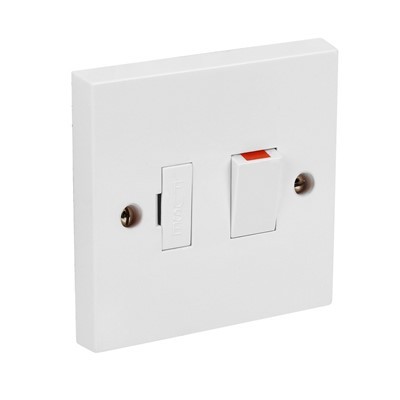

Fused Spur Switched Side Flex 13Amp
£3.50 GBP
Quantity:
Delivery Available
FREE in-store collection
OFFICIAL SUPPLIER
SKU Code: cedsps
Product Details
Description 13A switched fused connection unit with side flex outlet from the CED Classic White range. For permanently connecting and locally switching fixed appliances from the mains supply. Rocker switch isolates the appliance without disconnecting from the spur. Side flex outlet enables direct connection of flexible cable. No neon indicator. Cable clamp accommodates 2.5mm² flexible cable. 13A fuse fitted. Terminal capacity: 3 x 2.5mm². Minimum box depth: 25mm. Dimensions: 86 x 86 x 13mm. Fixing centres: 60.3mm. Kitemark approved KM73110. Compliant with BS 1363. 25-year guarantee.
Key Features
- 13A switched fused connection unit | No neon
- Side flex outlet — direct flexible cable connection
- Rocker switch for appliance isolation
- Cable clamp for flex strain relief (2.5mm² flex)
- 13A fuse fitted
- Terminal capacity: 3 x 2.5mm²
- Dimensions: 86 x 86 x 13mm | Fixing centres: 60.3mm
- Minimum box depth: 25mm
- Kitemark approved KM73110 | Compliant with BS 1363
- 25-year guarantee
Delivery and In-store Collection
Available for in-store collection.
Available for next day dispatch.
Available for next day dispatch.
Product Specifications
Please note all measurements are in 'mm'
Number Of Gangs
1
USB Power (W)
N/A
USB Ports
N/A
Number Of Switches
1
Minimum Box Depth (mm)
25
Finish
White
Type
Switches & Sockets
Packed Height (mm)
0
