Images are for illustration purposes only

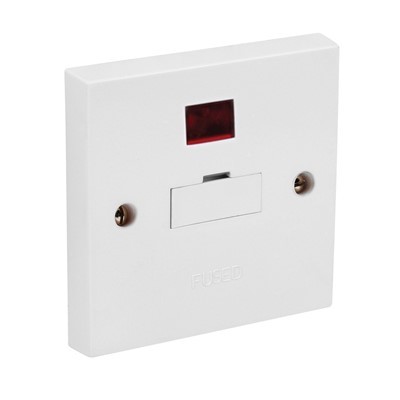

Fused Spur Side Flex + Neon 13Amp - DP Unswitched
£4.50 GBP
Quantity:
Delivery Available
FREE in-store collection
OFFICIAL SUPPLIER
SKU Code: cedspn
Product Details
Description 13A double pole unswitched fused connection unit with side flex outlet and neon indicator from the CED Classic White range. For permanently connecting fixed appliances directly to the mains supply via a spur. The unswitched design means the appliance is always connected when the supply is live; the neon confirms power presence. Side flex outlet allows direct connection of flexible cable. Cable clamp accommodates 2.5mm² flexible cable. Fitted with 13A fuse. Terminal capacity: 3 x 2.5mm². Minimum box depth: 25mm. Dimensions: 86 x 86 x 13mm. Fixing centres: 60.3mm. Kitemark approved KM73109/KM73110. Compliant with BS 1363. 25-year guarantee.
Key Features
- 13A double pole | Unswitched | Neon indicator
- Side flex outlet — direct flexible cable connection
- Cable clamp for flex strain relief (2.5mm² flex)
- 13A fuse fitted
- Terminal capacity: 3 x 2.5mm²
- Dimensions: 86 x 86 x 13mm | Fixing centres: 60.3mm
- Minimum box depth: 25mm
- Kitemark approved | Compliant with BS 1363
- 25-year guarantee
Delivery and In-store Collection
Available for in-store collection.
Available for next day dispatch.
Available for next day dispatch.
Product Specifications
Please note all measurements are in 'mm'
Number Of Gangs
N/A
USB Power (W)
N/A
USB Ports
N/A
Number Of Switches
N/A
Minimum Box Depth (mm)
25
Finish
White
Type
Switches & Sockets
Packed Height (mm)
0
