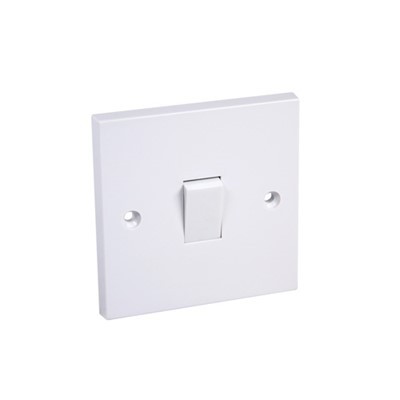

Switch 1 Gang 2 Way 10Amp
£1.50 GBP
Quantity:
Delivery Available
FREE in-store collection
OFFICIAL SUPPLIER
SKU Code: ceds12
Product Details
Description Single gang 2-way 10A light switch from the CED Classic White range. 2-way switches can also be wired as 1-way. 10AX rated — suitable for fluorescent and inductive loads without derating. Brilliant white fireproof urea-formaldehyde construction. Silver contacts for extended life. Terminal capacity: 3 x 1.5mm². Supplied with M3.5 x 30mm fixing screws. Minimum box depth: 16mm. Front plate depth: 9mm. Dimensions: 86 x 86 x 9mm. Fixing centres: 60.3mm. Kitemark approved, licence no. KM73110. Compliant with BS 3676 / BS EN 60669. CE and UKCA approved. 25-year guarantee.
Key Features
- 1 gang | 2-way (can also be wired 1-way) | 10A (10AX rated)
- Brilliant white urea-formaldehyde — fireproof square edge design
- Silver contacts for extended service life
- Terminal capacity: 3 x 1.5mm²
- Dimensions: 86 x 86 x 9mm | Fixing centres: 60.3mm
- Minimum box depth: 16mm | Front plate depth: 9mm
- Supplied with M3.5 x 30mm fixing screws
- Kitemark approved — KM73110 | CE and UKCA approved
- Compliant with BS 3676 / BS EN 60669
- 25-year guarantee
Delivery and In-store Collection
Available for in-store collection.
Available for next day dispatch.
Available for next day dispatch.
Product Specifications
Please note all measurements are in 'mm'
Number Of Gangs
1
USB Power (W)
N/A
USB Ports
N/A
Number Of Switches
1
Minimum Box Depth (mm)
16
Finish
White
Type
Switches & Sockets
Packed Height (mm)
0
