Images are for illustration purposes only

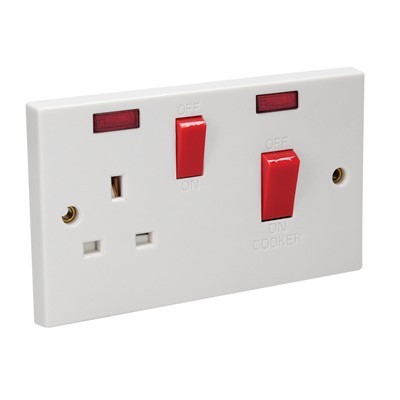

Cooker Switch Socket 45A + Neon (Double Pole)
£12.00 GBP
Quantity:
Delivery Available
FREE in-store collection
OFFICIAL SUPPLIER
SKU Code: axmcs45skn
Product Details
"Product Features
45Amp D.P. main switch with 13Amp socket
Terminal capacity - 2 x 10mm², 1 x 10mm² each
Supplied with M3.5 x 30mm fixing screws
General Information
Colour/Finish White
Dimensions (mm) 86 x 146 x 11mm
Fixing Centre (mm) 120.6mm
Front Plate Depth (mm) 11mm
Minimum Box Depth (mm) 25mm
Electrical
Approvals ASTA
Frequency (Hz) 50/60Hz
Kite Mark / ASTA lic. 922
Number Earth Terminals 2
Number Poles 2 (Double)
Rated Load Capacity (Amps) 45A / 13A (socket)
Rated Operating Voltage (v) 250v
Terminal Capacity (mm²) 1 x16mm²
Performance Data
Outlets (1 / 2) etc 1 Gang
Switch (1 / 2) etc 2 Gang (with Neon Indicators)
Construction
Body Urea Formaldehyde
Warranty (Years) 25
Weight 205g"
Delivery and In-store Collection
Available for in-store collection.
Available for next day dispatch.
Available for next day dispatch.
Product Specifications
Please note all measurements are in 'mm'
Number Of Gangs
1
USB Power (W)
N/A
USB Ports
N/A
Number Of Switches
2
Minimum Box Depth (mm)
25
Finish
White
Type
Switches & Sockets
Packed Height (mm)
0
