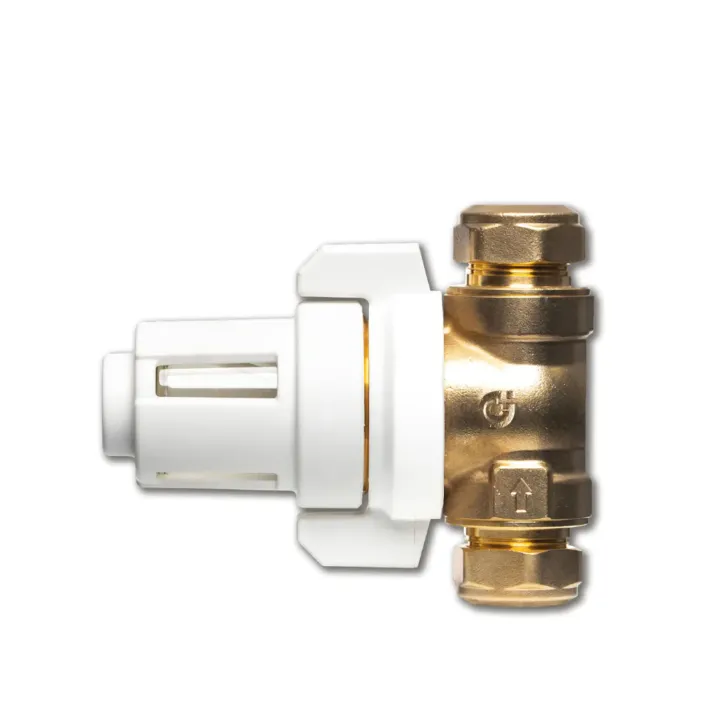

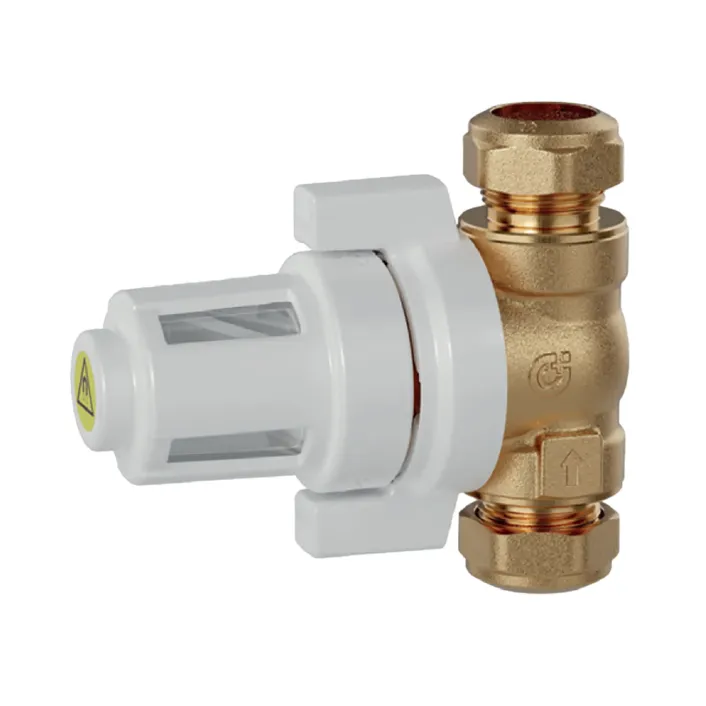

Altecnic Caleffi XS Under Boiler Magnetic Filter 22mm
£62.00 GBP
Quantity:
Delivery Available
FREE in-store collection
OFFICIAL SUPPLIER
SKU Code: 545912
Product Details
- Glass indicators/windows allow for easy visual system health check
- Internal isolation valve designed so only water in the collection chamber is drained before cleaning the mesh, for quick and easy servicing
- Internal magnet and mesh for effective filtration
- Suitable for horizontal and vertical installation
- Medium: water, glycol solution
- Max. percentage of glycol: 30%
- Max. working pressure: 3 bar
- Working temperature range: 0 to 90˚C
- Filter mesh: 800 μm
- Magnetic induction of magnet: 0.475 T
- Kv: 3.66 m3/h
- Connection – 22mm compression: BS EN 12165 CW617N"
Delivery and In-store Collection
Available for in-store collection.
Available for next day dispatch.
Available for next day dispatch.
Product Specifications
Please note all measurements are in 'mm'
Drain plug material
Brass
Drain plug thread
N/A
Flow configuration
N/A
Inlet diameter (mm)
22
Fluid capacity (ml)
N/A
Weight (Kg)
1
Type
Magnetic Boiler Filters
Width(mm)
107.6
Height(mm)
104.4
Packed Height (mm)
0
